New Led T8 fluorescent tube SMD light
Product description

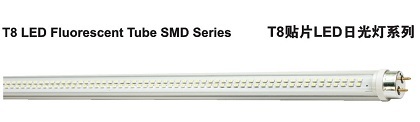

New Led T8 fluorescent tube SMD light
GT26G0001
Description
1. Maximum brightness , single led chip can reached 6-7lm.
2. 70%-80% energy-saving over fluorescent tubes
3. Low Light attenuation 3% in 3000h
4. Easy replacement of the normal fluorescent tube just need
to remove the starter or remove the ballast
5. Full plastic end cap insure the safety
6. Frosted lens without the hot spot.
7. Aluminum housing with heat release board to insure the low temperature & long life time
8. Use the samsung Auto-SMT machine for the led soldering to insure the high quality
9. 12 Hours life testing before the shipment insure the tubes performance
10. 6-QC Inspection in the production chain to insure the quality
11. No UV & Lead free component & material used for the tubes.
12. 3years warranty
13. CE ROSH approval
14. OEM orders are welcome

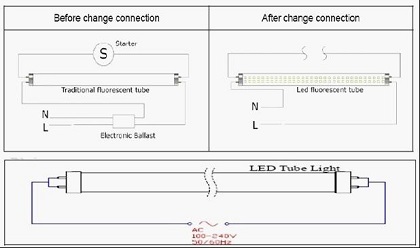

Installation
1. Led tube work without the starter or ballast
2. Must remove the starter or ballast before power the led tube
A. The lamp holder with inductor ballast(starter),Install as below:
Step1.Remove the traditional fluorescent tube from the light fixture
Step2.Take out the inductor ballast from the light fixture
Step3.Install led tube into the light fixture
B. The lamp holder with electrical ballast ,Install as below:
Step1.Remove the traditional fluorescent tube from the light fixture
Step2.Take out the inductor ballast from the lighting fixture
Step3.Connect the two wires, one wire connect to another wire connect to left side
Step4.Install Led tube into the light fixture .
